Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: HSS408
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$100-US$1000
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Antimagnetic |
Rated Lifting Weight (Kn): |
8-32 |
Standard Length Of Steel Wire Rope (M): |
20 |
Net Weight (Kg): |
6.8-25 |
Packing Size (mm): |
420X106X250 |
Product Name: |
Wire Rope Winch |
Transport Package: |
Industry Packing |
Specification: |
6.8, 13, 25KG |
HS Code: |
8467890000 |
Supply Ability: |
1000PCS/Day |
Package Size: |
300.00cm * 200.00cm * 100.00cm |
Package Gross Weight: |
50.000kg |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Customized |
Samples: |
US$ 150/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Condition: |
New |
Feature: |
Antimagnetic |
Rated Lifting Weight (Kn): |
8-32 |
Standard Length Of Steel Wire Rope (M): |
20 |
Net Weight (Kg): |
6.8-25 |
Packing Size (mm): |
420X106X250 |
Product Name: |
Wire Rope Winch |
Transport Package: |
Industry Packing |
Specification: |
6.8, 13, 25KG |
HS Code: |
8467890000 |
Supply Ability: |
1000PCS/Day |
Package Size: |
300.00cm * 200.00cm * 100.00cm |
Package Gross Weight: |
50.000kg |
Type: |
Tightener |
Certification: |
CE, ISO |
Customized: |
Customized |
Samples: |
US$ 150/Piece 1 Piece(Min.Order) | |
Shipping Cost: |
About Shipping Cost And Estimated Delivery Time. |
Return&refunds: |
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

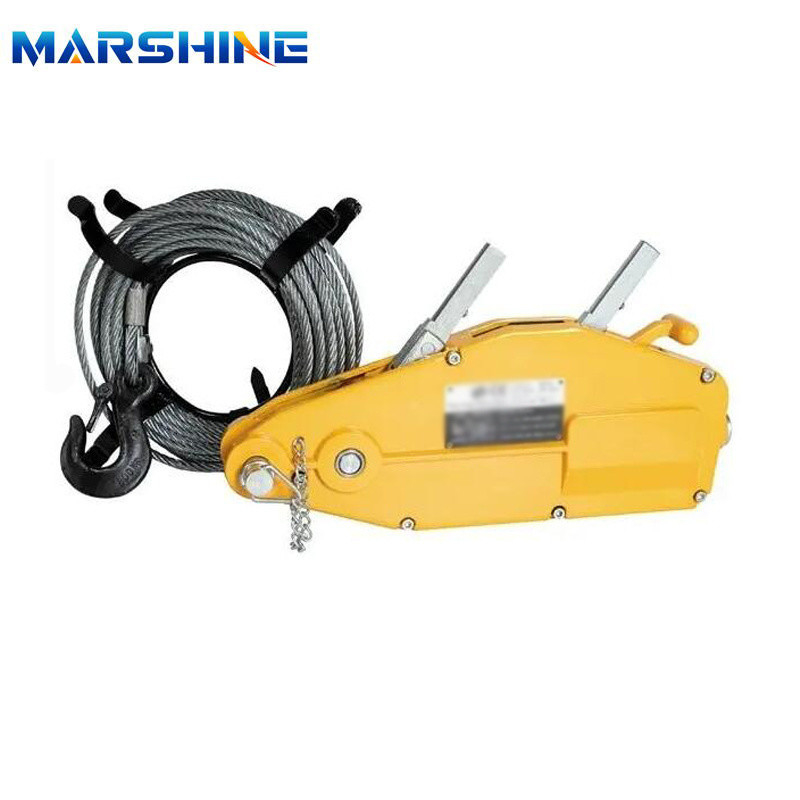

1. Constructed from aluminum alloy.
2. Equipped with both a forward and backward handle for pulling the wire rope in different directions.
3. Utilizes a lever for operation.
4. Features a wire rope winch with a 20-meter galvanized steel wire rope.
5. Includes a hand stick for added convenience.
Main Specifications
| Item Number | 14183 | 14184 | 14185 |
| Model | HSS408 | HSS416 | HSS432 |
| Rated Lifting Weight (kN) | 8 | 16 | 32 |
| One Stroke (mm) | ≥40 | ≥40 | ≥16 |
| Diameter of Steel Wire Rope (mm) | Φ8 | Φ11.6 | Φ16 |
| Standard Length of Steel Wire Rope (m) | 20 | 20 | 20 |
| Net Weight (kg) | 6.8 | 13 | 25 |
| Pull Force to Lift Rated Load (N) | ≤343 | ≤400 | ≤441 |
| Packing Size (mm) | 420×106×250 | 530×126×315 | 660×160×360 |
For the Transmission work support, Marshine Power offers a range of high-quality products including Tubular Gin Poles, Hydraulic Cable Pullers, Wire Rope Pulley Blocks, Hoisting Tackles, Wire Rope Grippers, Cable Reel Spools and Stands. All our products are OEM and manufactured according to ISO 9001:2008 standards, ensuring professionalism and reliability. Our products are distributed across more than 50 countries worldwide. Additionally, we provide customization options for items like emergency restoration towers and crossing structures. Safety tools and accessories are available without a minimum order quantity requirement. Whether you need assistance with technical issues or product requirements, feel free to reach out to us. Thank you for considering Marshine Power.
