Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE , ISO
Model Number: JSD
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 500-1000, set
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Condition: |
New |
Feature: |
Insulation |
Power Source: |
Electric Engine |
Weight: |
203-220kg |
Application: |
Power Construction |
Product Name: |
Cable Pulling Machine |
Speed(M/Min): |
6.5 |
Transport Package: |
Packed With Wooden Case |
Specification: |
203kg Ect. |
HS Code: |
8428330000 |
Supply Ability: |
3000 Set/ Month |
Type: |
Tractor Winch |
Condition: |
New |
Feature: |
Insulation |
Power Source: |
Electric Engine |
Weight: |
203-220kg |
Application: |
Power Construction |
Product Name: |
Cable Pulling Machine |
Speed(M/Min): |
6.5 |
Transport Package: |
Packed With Wooden Case |
Specification: |
203kg Ect. |
HS Code: |
8428330000 |
Supply Ability: |
3000 Set/ Month |
Type: |
Tractor Winch |

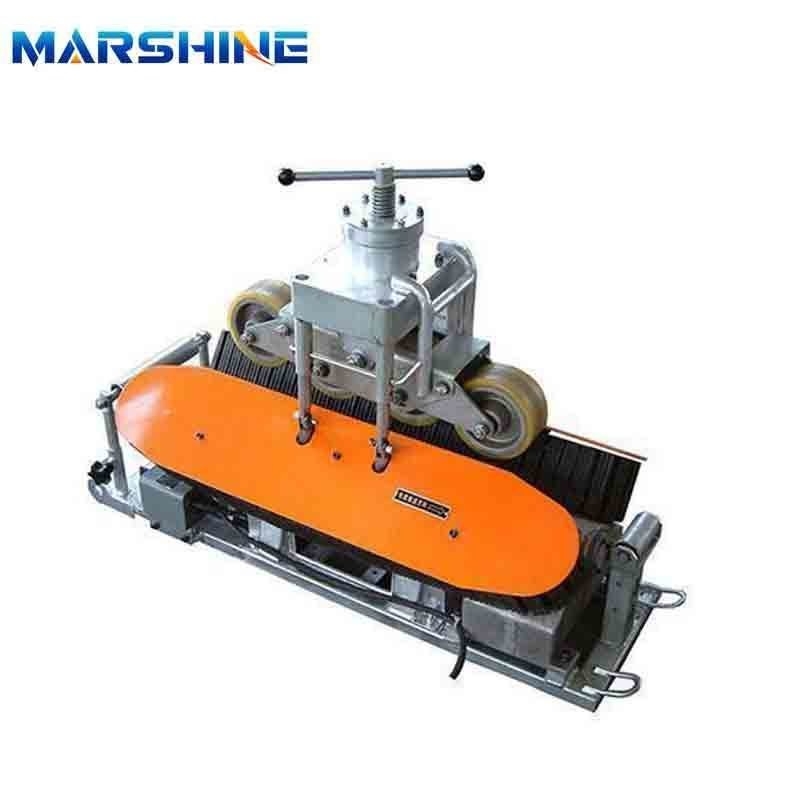

This cable feeder is designed for stringing large-diameter power and communication cables. If core grinding is needed, it must be specified in the contract.
Applications: Suitable for stringing large-diameter electric power and communication cables.
Important Notes:
1. Please clearly state in the contract if a winch is required.
2. Each cable feeder comes with a cable reel and a sub-control box. The reel can hold up to 70 meters of cable.
3. A control box will be provided free of charge if you purchase more than 6 units.
Technical Parameters
| Item Number | 21102 | 21103B | 21105 | 21106 |
| Model | DLSSJ5 | DLSSJ5B | SSJ5V | DLSSJ8A |
| Diameter of suitable cable(mm) | 60-140 | 40-150 | 40-150 | 50-200 |
| Pull Force(kN) | 5 | 5 | 5 | 8 |
| Speed(m/min) | 6.5 | 6.5 | 6.5 | 6.5 |
| Motor Power(kW) | 1.5 | 2X0.55 | 1.5 | 2X0.75 |
| Supply Voltage(V) | AC380 | AC380 | AC380 | AC380 |
| Dimensions(mm) | 948x470x542 | 900x617x452 | 1060x437x690 | 1000x657x464 |
| Weight(kg) | 203 | 190 | 148 | 220 |
| Crawler Arrangement | Updown Configuration crawler | Right and left Configuration crawler | V type configuration crawler | Right and left Configuration crawler |
| Remark | Can add auxiliary winch | Can add auxiliary winch | The press pulley removable |
Can add auxiliary winch |
