Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: YS
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd , 5.6-1088 , set
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Function: |
Construction Materilals |
Weight(Kg/M): |
0.1~3.2 |
Rated Load Kn: |
300kn |
Applicable Cable Diameter: |
50~125mm |
Diameter (mm): |
20mm |
Length: |
Custermized |
Transport Package: |
Wooden Box Or Customized Required |
Specification: |
Aluminium, Alloy Steel |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
25000m/Mouth |
Certification: |
ISO |
Technique: |
Drawn Wire |
Application: |
Rope, Manufacturing, Construction, Transmission Line Stringing |
Alloy Or Not: |
Alloy |
Standard: |
JIS, GB |
Function: |
Construction Materilals |
Weight(Kg/M): |
0.1~3.2 |
Rated Load Kn: |
300kn |
Applicable Cable Diameter: |
50~125mm |
Diameter (mm): |
20mm |
Length: |
Custermized |
Transport Package: |
Wooden Box Or Customized Required |
Specification: |
Aluminium, Alloy Steel |
Origin: |
China |
HS Code: |
8467890000 |
Supply Ability: |
25000m/Mouth |
Certification: |
ISO |
Technique: |
Drawn Wire |
Application: |
Rope, Manufacturing, Construction, Transmission Line Stringing |
Alloy Or Not: |
Alloy |
Standard: |
JIS, GB |

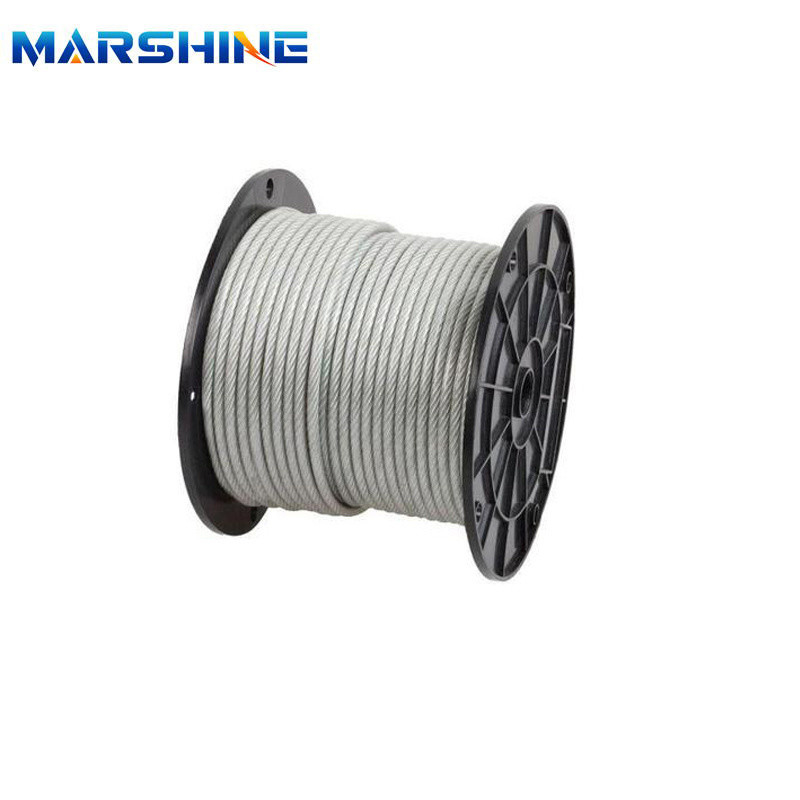

300KN Breaking Load Anti Twist Wire Rope
This type is designed for specail engineering needs, and made of fine hot galvanized steel wire through specail production process. The wirerope is inter-braided with multiple strands into a rope with square or hexagonal and face.
As the center of the end face counteracts the resultant monent. The rope maintains torsion-proof when affected by force, and it greatly reduces corrosion and rust.
Detailed Data
Type | Nominal Diameter (mm) |
Structure | Weight (Kg/m) |
Wirerope Breaking Force(T) | Standard Length (m) |
||
Strand Structure | |||||||
1x19 | 1x19w | 1T25 1T29 | |||||
YS6-8x19 | 6 | Square8-Strand | 0.115 | 16 | 17.5 | 1000 | |
YS7-8x19 | 7 | Square8-Strand | 0.185 | 32 | 36 | 1000 | |
YS8-8x19 | 8 | Square8-Strand | 0.220 | 38 | 40 | 1000 | |
YS9-12x19 | 9 | Square12-Strand | 0.280 | 50 | 55 | 1000 | |
YS11-12x19 | 11 | Square12-Strand | 0.480 | 70 | 80 | 1000 | |
YS13-12x19 | 13 | Square12-Strand | 0.630 | 105 | 120 | 1000 | |
YS16-12x19 | 16 | Square12-Strand | 0.925 | 140 | 158 | 1000 | |
YS18-12x19 | 18 | Square12-Strand | 1.150 | 185 | 540 | 1000 | |
YS20-12x19 | 20 | Square12-Strand | 1.320 | 250 | 1000 | ||
YS22-12x1T25 | 22 | Square12-Strand | 1.882 | 320 | 1000 | ||
YS24-12x1T25 | 24 | Square12-Strand | 2.034 | 360 | 1000 | ||
YS26-12x1T25 | 26 | Square12-Strand | 2.350 | 420 | 1000 | ||
YS28-12x1T29 | 28 | Square12-Strand | 3.012 | 480 | 1000 | ||
YS30-12x1T29 | 30 | Square12-Strand | 3.320 | 540 | 1000 |
To support transmission work, Marshine Power offers tubular cable laying rollers, hydraulic cable pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable winding drums, and brackets - all of which are OEM and professionally manufactured. They comply with ISO 9001:2008 standards and are exported to over 50 countries worldwide. For certain projects such as emergency tower repairs and cross structures, we provide customization, as well as safety tools and accessories, with no minimum order requirement. We offer complimentary assistance with technical queries or product requirements. Please feel free to reach out to us. Thank you.
1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.
2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.
3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.
4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.
5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.
6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.
Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.
Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
