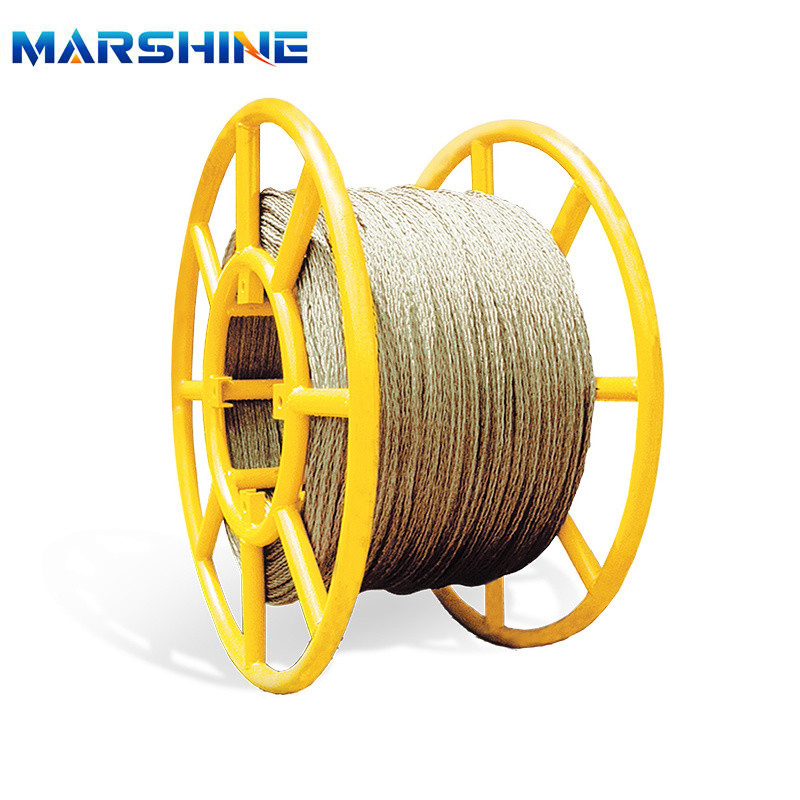

20-30 Kn Rated Load Alloy Stainless Steel Wire Rope For Insurance

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: 18101~118154B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: usd , 0.6-2300 , pcs

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Function:
Construction Materilals
Weight(Kg/M):
1.4~2.3
Rated Load Kn:
20~30
Applicable Cable Diameter:
50~125mm
Diameter (mm):
7~42mm
Breaking Force (Kn):
34~817kn
Length:
Custermized
Transport Package:
Wooden Box Or Customized Required
Specification:
Aluminium, Alloy Steel
Origin:
China
HS Code:
4015190000
Supply Ability:
25000m/Mouth
Certification:
ISO
Surface:
Smooth
Technique:
Drawn Wire
Application:
Rope, Manufacturing, Construction
Alloy Or Not:
Alloy
Standard:
JIS, GB
Function:
Construction Materilals
Weight(Kg/M):
1.4~2.3
Rated Load Kn:
20~30
Applicable Cable Diameter:
50~125mm
Diameter (mm):
7~42mm
Breaking Force (Kn):
34~817kn
Length:
Custermized
Transport Package:
Wooden Box Or Customized Required
Specification:
Aluminium, Alloy Steel
Origin:
China
HS Code:
4015190000
Supply Ability:
25000m/Mouth
Certification:
ISO
Surface:
Smooth
Technique:
Drawn Wire
Application:
Rope, Manufacturing, Construction
Alloy Or Not:
Alloy
Standard:
JIS, GB
Product Description

Quality Assurance Stainless Steel Wire Rope


Depending on the type of machine, there are several diameters available for anti-twist ropes. For example, diameters range from 7, 11, 13, 15, 18, 20-42mm. These ropes have many advantages:

1. High flexibility.
2. Stable rotation.
3. Even distribution of pressure between basic wires.
4. Improved efficiency in stringing operations.
5. Equipped with a separate bracket for galvanized primary wires.


Detailed Data

Item number

Structure

Diameter (mm)

Single bundle diameter (mm)

Breaking force (kN)

Weight (kg/m)

Production length (m)

18101

Square eight strands

7

φ2.0

34.38

0.178

1000

18102

9

φ2.5

53.9

0.305

18103

11

φ3.0

76.94

0.386

18104

13

φ3.5

105.04

0.552

18105

15

φ4.0

137.51

0.692

18108

Square twelve strands

9

φ2.0

51.57

0.25

18109

11

φ2.5

80.8

0.458

18110

13

φ3.0

115.4

0.579

18111

15

φ3.5

157.55

0.828

18112

18

φ4.0

206.27

1.038

18113

20

φ4.5

260.3

1.331

800

18114

23

φ5.0

320.82

1.557

18115

25

φ5.5

387.83

1.882

18118

Hexagon twelve strands

11

φ2.5

80.8

0.458

1000

18119

13

φ3.0

115.4

0.579

18120

15

φ3.5

157.5

0.828

18121

18

φ4.0

205.71

1.038

18122

20

φ4.5

260.34

1.331

800

18123

23

φ5.0

320.82

1.638

18124

25

φ5.5

387.82

2.039

600

18125

27

φ6.0

461.5

2.373

18126

28

φ6.2

520

2.6

18127

30

φ6.5

560

3.12

18140

Hexagon eighteen strands

21

φ3.0

173.1

0.87

800

18141

24

φ3.5

236.33

1.242

18151

27

φ4.0

309.4

1.557

600

18152

30

φ4.5

389.28

1.997

18153

33

φ5.0

481.22

2.457

18154

36

φ5.5

581.75

3.059

18154A

39

φ6.0

692.26

3.56

18154B

42

φ6.5

817

4.227


Quality Assurance Stainless Steel Wire Rope

To support transmission work, Marshine Power offers tubular cable laying rollers, hydraulic cable pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable winding drums, and brackets - all of which are OEM and professionally manufactured, conforming to ISO 9001:2008 standards, and sold to over 50 countries worldwide. For certain projects such as emergency tower repairs and cross structures, we provide customization, as well as safety tools and accessories, with no minimum order requirement. We offer complimentary assistance with technical queries or product requirements. Please contact us. Thank you.

Quality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire Rope
Quality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire RopeQuality Assurance Stainless Steel Wire Rope

1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.



2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.



3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.



4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.



5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.



6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.


Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.



Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
