20-30 Kn Rated Load Rotation Resistant Rope For Heavy-Duty Applications

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: 18101~18154B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: usd , 1.5-989 , pcs

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:
Function:
Construction Materilals
Weight(Kg/M):
1.4~2.3
Rated Load Kn:
20~30
Applicable Cable Diameter:
50~125mm
Wire Gauge:
7~42mm
Diameter (mm):
7~42mm
Breaking Force (Kn):
34~817kn
Length:
Custermized
Transport Package:
Wooden Box Or Customized Required
Specification:
Aluminium, Alloy Steel
Origin:
China
HS Code:
4015190000
Supply Ability:
25000m/Mouth
Certification:
ISO
Technique:
Drawn Wire
Application:
Rope, Manufacturing, Construction
Alloy Or Not:
Alloy
Standard:
JIS, GB
Function:
Construction Materilals
Weight(Kg/M):
1.4~2.3
Rated Load Kn:
20~30
Applicable Cable Diameter:
50~125mm
Wire Gauge:
7~42mm
Diameter (mm):
7~42mm
Breaking Force (Kn):
34~817kn
Length:
Custermized
Transport Package:
Wooden Box Or Customized Required
Specification:
Aluminium, Alloy Steel
Origin:
China
HS Code:
4015190000
Supply Ability:
25000m/Mouth
Certification:
ISO
Technique:
Drawn Wire
Application:
Rope, Manufacturing, Construction
Alloy Or Not:
Alloy
Standard:
JIS, GB
Product Description

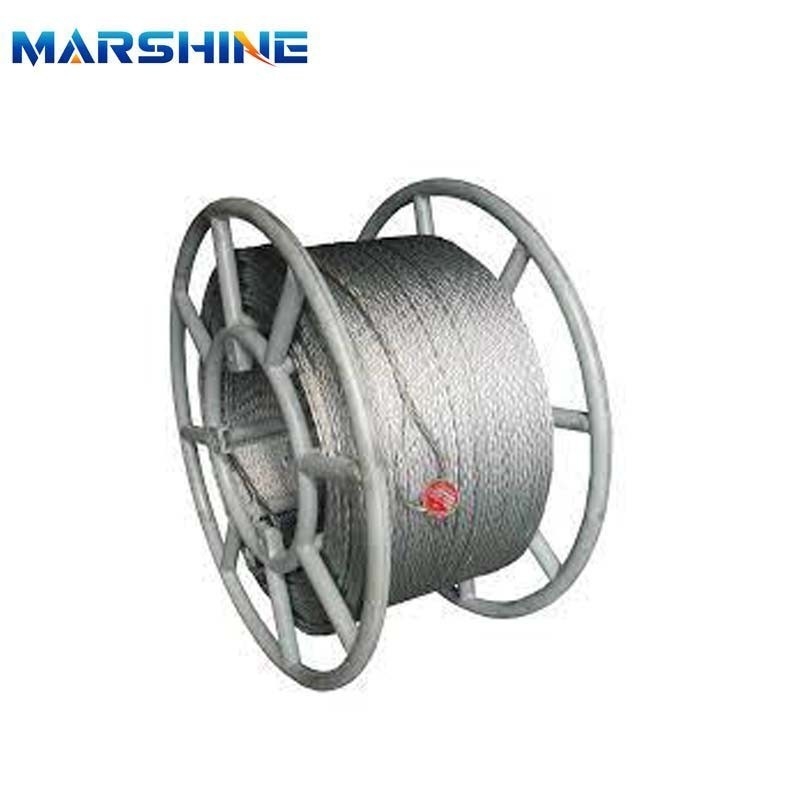

Anti-Twisting Braided Steel Rope


Rotating Optical Cable Network Sleeve Connector, Insulated Conductor Network Connector used for cable pulling in power line construction, cable pulling socks feature the following characteristics:

Bend-resistant joint, wire series rotating joint, mesh sock clamp, splicing sleeve protector, running board.


Detailed Data

Item number Structure Diameter (mm) Single bundle diameter (mm) Breaking force (kN) Weight (kg/m) Production length (m)
18101 Square eight strands 7 φ2.0 34.38 0.178 1000
18102 9 φ2.5 53.9 0.305
18103 11 φ3.0 76.94 0.386
18104 13 φ3.5 105.04 0.552
18105 15 φ4.0 137.51 0.692
18108 Square twelve strands 9 φ2.0 51.57 0.25
18109 11 φ2.5 80.8 0.458
18110 13 φ3.0 115.4 0.579
18111 15 φ3.5 157.55 0.828
18112 18 φ4.0 206.27 1.038
18113 20 φ4.5 260.3 1.331 800
18114 23 φ5.0 320.82 1.557
18115 25 φ5.5 387.83 1.882
18118 Hexagon twelve strands 11 φ2.5 80.8 0.458 1000
18119 13 φ3.0 115.4 0.579
18120 15 φ3.5 157.5 0.828
18121 18 φ4.0 205.71 1.038
18122 20 φ4.5 260.34 1.331 800
18123 23 φ5.0 320.82 1.638
18124 25 φ5.5 387.82 2.039 600
18125 27 φ6.0 461.5 2.373
18126 28 φ6.2 520 2.6
18127 30 φ6.5 560 3.12
18140 Hexagon eighteen strands 21 φ3.0 173.1 0.87 800
18141 24 φ3.5 236.33 1.242
18151 27 φ4.0 309.4 1.557 600
18152 30 φ4.5 389.28 1.997
18153 33 φ5.0 481.22 2.457
18154 36 φ5.5 581.75 3.059
18154A 39 φ6.0 692.26 3.56
18154B 42 φ6.5 817 4.227



Anti-Twisting Braided Steel Rope Rotation Resistant Rope

To support transmission work, Marshine Power offers tubular cable laying rollers, hydraulic cable pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable winding drums, and brackets - all of which are OEM and professionally manufactured, conforming to ISO 9001:2008 standards, and exported to over 50 countries worldwide. For projects such as emergency tower repairs and cross structures, we offer customization, as well as safety tools and accessories, with no minimum order requirement. Feel free to reach out to us for assistance with technical queries or product requirements. Thank you.

Anti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant Rope
Anti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant RopeAnti-Twisting Braided Steel Rope Rotation Resistant Rope

1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.



2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.



3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.



4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.



5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.



6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.


Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.



Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
