Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: EC-65M
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$10-US$100
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: TT,LC,WESTERN UNION
Supply Ability: 200 CONTAINER/YEAR
Charing Time: |
2 Hours |
Net/Gross Weight: |
2.6/7.3kg |
Battery: |
5ah Li Battery |
Product Name: |
Electric Ratchet Cable Cutter |
Transport Package: |
Packaged In Plastic Box |
Specification: |
2.6kg |
HS Code: |
8203300000 |
Supply Ability: |
2000sets/Month |
Type: |
Cutting Tools |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Explosion-Proof |
Voltage: |
DC18V |
Charing Time: |
2 Hours |
Net/Gross Weight: |
2.6/7.3kg |
Battery: |
5ah Li Battery |
Product Name: |
Electric Ratchet Cable Cutter |
Transport Package: |
Packaged In Plastic Box |
Specification: |
2.6kg |
HS Code: |
8203300000 |
Supply Ability: |
2000sets/Month |
Type: |
Cutting Tools |
Certification: |
CE, ISO |
Customized: |
Customized |
Condition: |
New |
Feature: |
Explosion-Proof |
Voltage: |
DC18V |

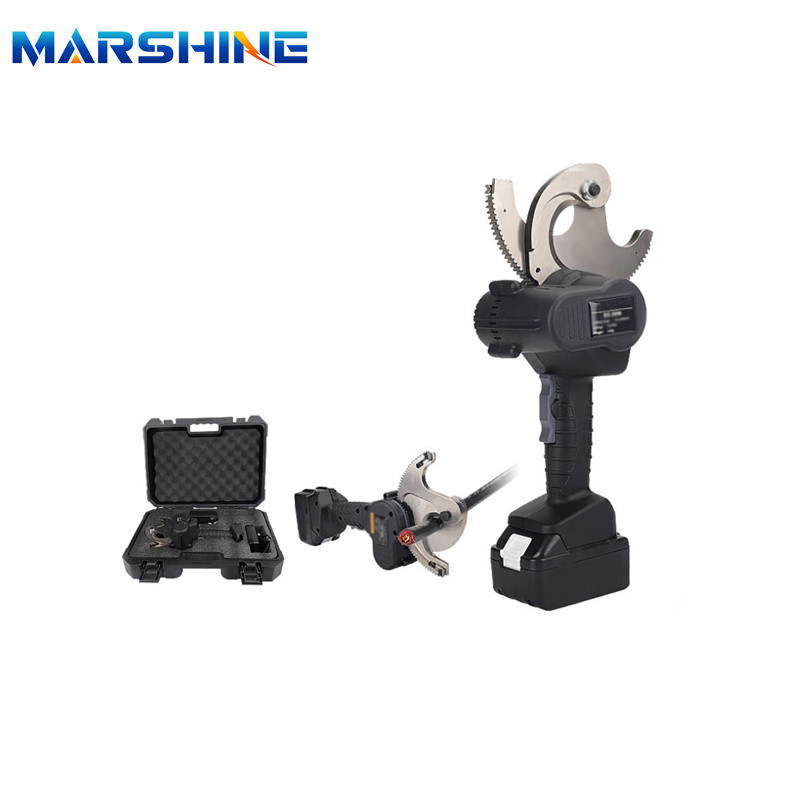

This cutting tool is versatile, capable of handling a variety of cables including Al cables (750mm²), Cu cables (375mm²), and ACSR cables (560mm²). Its applications span across multiple industries such as electric power, steel, petrochemical, mining, railways, highways, pipelines, and sea rescue.
Energy efficiency is a standout feature, thanks to its high-performance DC 18V 4.0Ah Li-ion battery. This battery not only delivers strong power but also boasts ultra-low power consumption and an impressively long standby time. With the ability to handle cutting and charging cycles up to 100 times, it ensures uninterrupted operation.
Mechanically, the tool is built to last. Constructed from carbon steel and treated with chemical nickel, it can withstand prolonged and intense usage. The double-speed hydraulic device design ensures efficient operation, with the motor stopping and pressure being released automatically.
Quality is a top priority, evident in the durable on-off switch that undergoes rigorous testing before leaving the factory. This switch is built to withstand thousands of cycles, ensuring long-term reliability.
Ease of operation is another key feature. The tool's lightweight and ergonomic design make it easy to carry and operate. With a stroke of up to 54mm and sharp, durable blades, it streamlines cutting tasks, saving both time and effort.
Detailed Data
| Model No | EC-50M | EC-65M |
| Voltage & Battery | DC18V/5Ah Li battery | |
| Charing time | 2 hours | |
| Net/gross weight | 2.6/7.3 kg | |
| Cutting range |
Al Cables(750mm²), Cu cables(375mm²) and ACSR Cables(560mm²) |
high and low voltage cables≤Φ65 mm |
| Function | 1.built-in overload protection device prevents overload operation; 2.the pinion gear has a large torque, and the ratchet-type card position prevents slipping; 3.standard configuration with 2 rechargeable batteries and 1 charger | |
| Attentions | after the machine is turned on for 5 minutes, it will automatically shut down if it is not used. If you use it again, please press and hold the power button for 5 seconds | |
