Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SCHX-610
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 110-300, pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Type: |
Hydraulic Crimping Tools |
Product Name: |
Hydraulic Press Tool |
Max Compression(kn): |
150 Kn |
Weight (kg): |
5.3 Kg |
Product Application: |
Press Cu / Al Cable Lugs |
Crimping Profile: |
Hexagon |
Transport Package: |
Packaged In Steel Box Or Can Be Customized |
Brand: |
MARSHINE |
Original Place: |
China |
HS Code: |
8467890000 |
Product Certification: |
ISO, CE |
Usage: |
Construction , Metallurgy |
Type: |
Hydraulic Crimping Tools |
Product Name: |
Hydraulic Press Tool |
Max Compression(kn): |
150 Kn |
Weight (kg): |
5.3 Kg |
Product Application: |
Press Cu / Al Cable Lugs |
Crimping Profile: |
Hexagon |
Transport Package: |
Packaged In Steel Box Or Can Be Customized |
Brand: |
MARSHINE |
Original Place: |
China |
HS Code: |
8467890000 |
Product Certification: |
ISO, CE |
Usage: |
Construction , Metallurgy |
Detailed Data

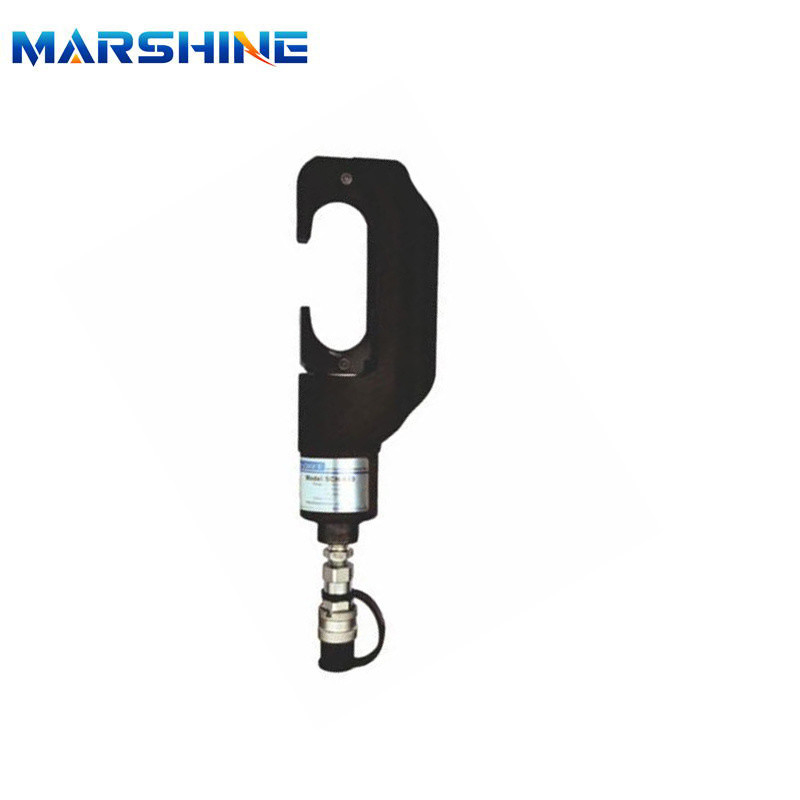

| Item Number | 16210D |
| Model | SCHX-610 |
| Max Compression(kN) | 150 |
| Compress range | Copper Terminal:50-400mm² |
| Aluminum Terminal:35-300mm² | |
| Weight(kg) | 5.3 |
| Compress Die Size | Hexagon Die: 50,70,95,120,150,185,240,300,400 |
| Characteristic | C type open design, convenient to put and get compression tube. Max open to 50mm and compress tube to 240mm² easily. Use high speed connector which easy to remove |
| Applicable Pump | HPX-700,HPX-700A,PEX-1,PEX-2 |
