Ningbo Marshine Power Technology Co.,Ltd sales@marshine.net 86-13777009159
Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SCHX-25
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: usd, 180-310, pcs
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Maximum Compression (Kn): |
250-2000 Kn |
Maximum Oil Pressure (MPa): |
70-94 Mpa |
Stroke (mm): |
25-35 Mm |
Weight (Kg): |
5.5-85 Kg |
Product Type: |
Double Column Hydraulic Press |
Transport Package: |
Industry Packing Or Can Be Customized |
Brand Of The Product: |
MARSHINE |
Place Of The Origin: |
China |
HS Code: |
8467890000 |
Product Feature: |
Automation , Precision , High Efficiency |
Product Name: |

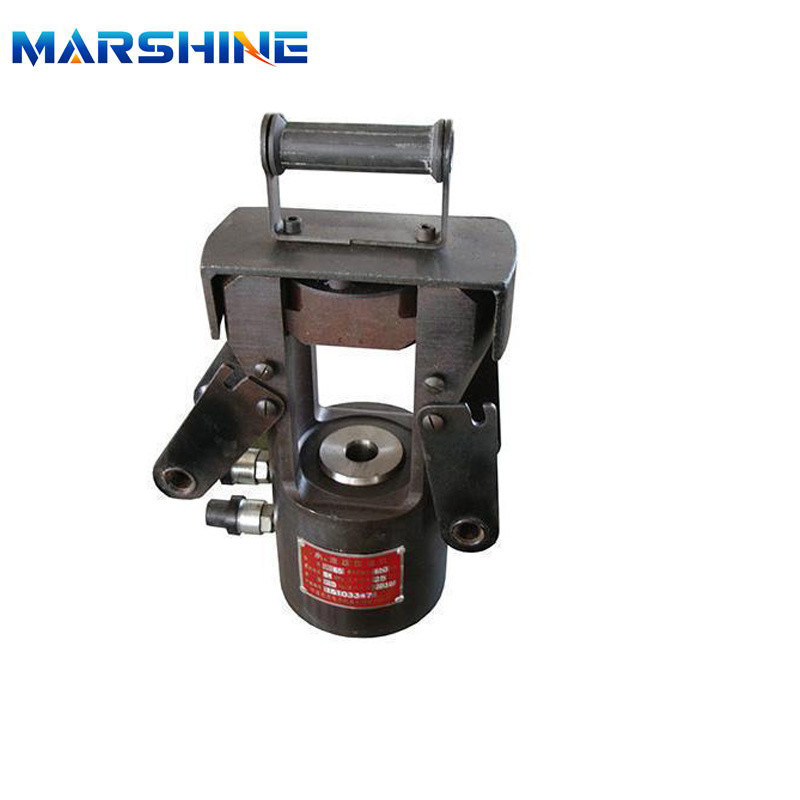

Hydraulic Wire Crimping Tool |
Condition: |
Brand New |
Maximum Compression (Kn): |
250-2000 Kn |
Maximum Oil Pressure (MPa): |
70-94 Mpa |
Stroke (mm): |
25-35 Mm |
Weight (Kg): |
5.5-85 Kg |
Product Type: |
Double Column Hydraulic Press |
Transport Package: |
Industry Packing Or Can Be Customized |
Brand Of The Product: |
MARSHINE |
Place Of The Origin: |
China |
HS Code: |
8467890000 |
Product Feature: |
Automation , Precision , High Efficiency |
Product Name: |
Hydraulic Wire Crimping Tool |
Condition: |
Brand New |
Technical Parameters
| Item number | Model | Maximum Compression(kN) | Maximum oil pressure (MPa) | Suitable copper terminals | Stroke(mm) | Weight (kg) |
| 16101 | SCHX-25 | 250 | 70 | 50-630 | 5.5 | |
| 16101A | FYQ-630A | 316 | 70 | 150-630 | 35 | 15.4 |
| 16101B | SCHX-45 | 450 | 70 | 50-800 | 10.6 | |
| 16102 | QY-35 | 350 | 70 | 25 | 12 | |
| 16103 | QY-65 | 650 | 94 | ≤ACSR500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | ≤ACSR720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | ≤ACSR1440 | 25 | 85 |
