Product Details
Place of Origin: China
Brand Name: MARSHINE
Certification: CE UL ROHS
Model Number: SKD
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: US$1-US$200
Packaging Details: Wooden Box, Wooden Pallet
Delivery Time: 15-30DAY
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 CONTAINER/YEAR
Manufacturing Process: |
Casting |
Pulley Sizes: |
Type O |
Application: |
Cabling System |
Weight: |
25-60kg |
Rated Load (Kn): |
10-30 |
Function: |
Tightening |
Maximum Gap (mm): |
10-95 |
Transport Package: |
Wooden Box Or Customized Required |
Specification: |
Aluminium, Alloy Steel |
HS Code: |
8467890000 |
Supply Ability: |
2500sets/Day |
Certification: |
ISO |
Color: |
Gloden |
Surface Treatment: |
Oxygenation |
Usage: |
Electrical Appliance |
Material: |
Aluminum Alloy |
Manufacturing Process: |
Casting |
Pulley Sizes: |
Type O |
Application: |
Cabling System |
Weight: |
25-60kg |
Rated Load (Kn): |
10-30 |
Function: |
Tightening |
Maximum Gap (mm): |
10-95 |
Transport Package: |
Wooden Box Or Customized Required |
Specification: |
Aluminium, Alloy Steel |
HS Code: |
8467890000 |
Supply Ability: |
2500sets/Day |
Certification: |
ISO |
Color: |
Gloden |
Surface Treatment: |
Oxygenation |
Usage: |
Electrical Appliance |
Material: |
Aluminum Alloy |

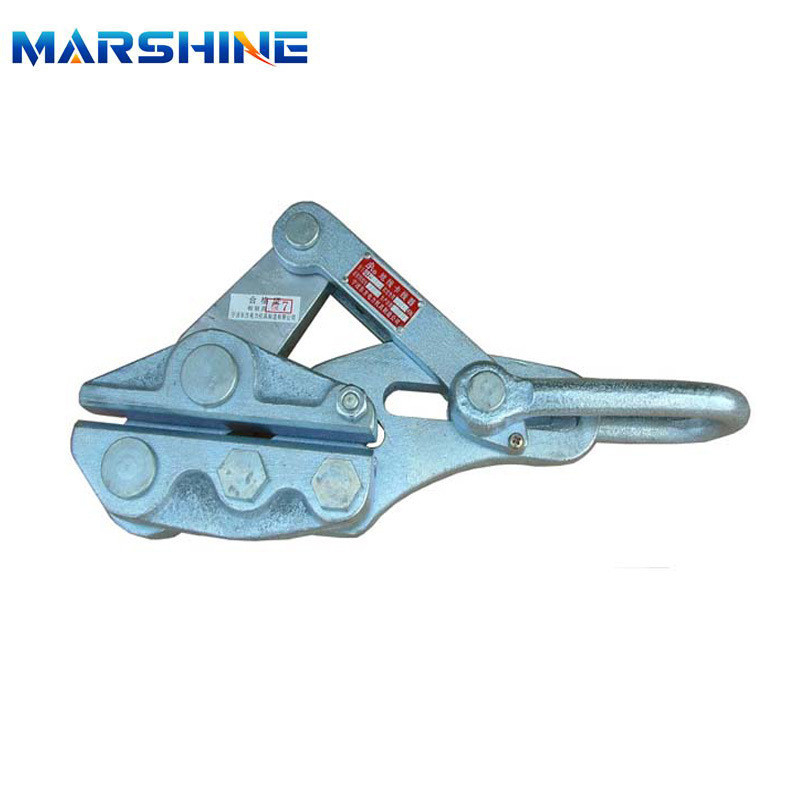

SKD Earth Wire Gripper
This SKD earth wire gripper is applicable to the construction of various earth wires, such as the stranded wire or the aluminum-clad steel stranded wire. Our product adopts the alloy steel material, which is also strengthened through heat treatment. Its V shaped jaws can effectively avoid skidding.
Product specification
| Item Number | Model | Rated Load (kN ) | Applicable Stranded Wire | Maximum Gap (mm) | Weight (kg) |
| 13113 | SKD25 | 10 | GJ25 | 95 | 25 |
| 13114 | SKD35 | 10 | GJ35 | 95 | 25 |
| 13115 | SKD50 | 15 | GJ50 | 10 | 35 |
| 13116 | SKD70 | 20 | GJ70 | 12.5 | 50 |
| 13117 | SKD100 | 30 | GJ100 | 14 | 60 |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Hydraulic cable puller, wire rope pulley block, hoisting tackle, Wire rope gripper , Cable reel spool and stand- all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls contact us. Thanks.
