Stainless Steel Pulley Tackle Swivel Snatch Block For Lifting Platform

Product Details

Place of Origin: China

Brand Name: MARSHINE

Certification: CE UL ROHS

Model Number: QHN

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: usd , 2.4-28 , pcs

Packaging Details: Wooden Box, Wooden Pallet

Delivery Time: 15-30DAY

Payment Terms: T/T, L/C, Western Union

Supply Ability: 200 CONTAINER/YEAR

Get Best Price
Product Details
Highlight:

Stainless Steel Pulley Tackle

,

Swivel Pulley Tackle

,

Stainless Steel swivel snatch block

Material:
Stainless Steel
Number Of Sheaves:
2
Control:
Manual
Color:
Customize
Application:
Lifting Platform
Surface Treatment:
Oxygenation
Sheave:
1~3
Weigt Kg:
1.8~13.9
Pulley Sizes:
Type O
Rated Load:
10~150 Kn
Transport Package:
Carton Box
Specification:
1~3
Origin:
China
HS Code:
8479909090
Supply Ability:
20000PCS/Month
Package Size:
37.00cm * 31.50cm * 10.00cm
Package Gross Weight:
20.000kg
After-sales Service:
1 Year
Warranty:
1 Year
Type:
Ring
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Material:
Stainless Steel
Number Of Sheaves:
2
Control:
Manual
Color:
Customize
Application:
Lifting Platform
Surface Treatment:
Oxygenation
Sheave:
1~3
Weigt Kg:
1.8~13.9
Pulley Sizes:
Type O
Rated Load:
10~150 Kn
Transport Package:
Carton Box
Specification:
1~3
Origin:
China
HS Code:
8479909090
Supply Ability:
20000PCS/Month
Package Size:
37.00cm * 31.50cm * 10.00cm
Package Gross Weight:
20.000kg
After-sales Service:
1 Year
Warranty:
1 Year
Type:
Ring
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Product Description

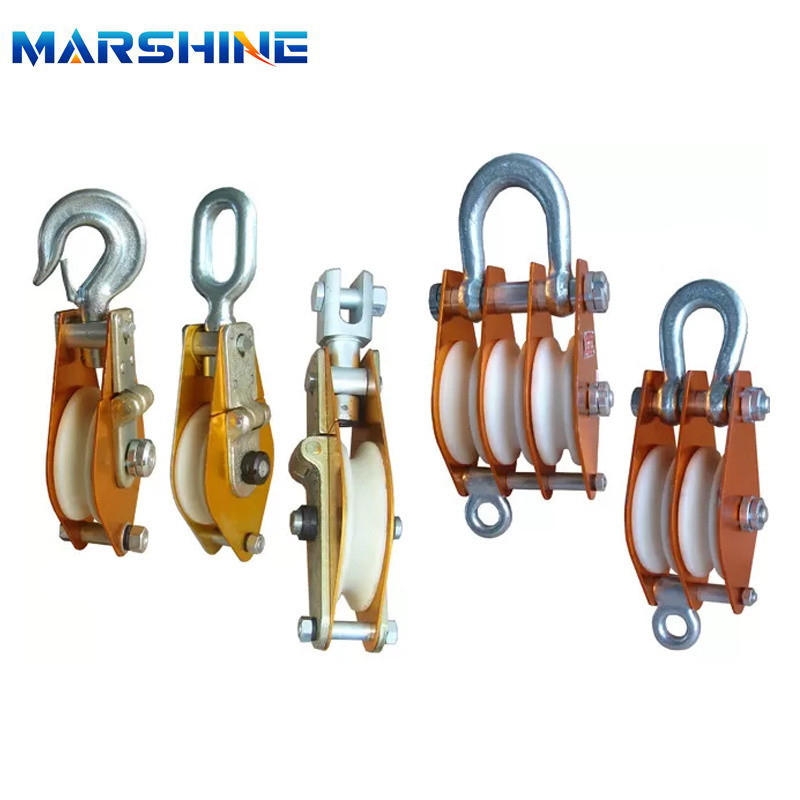

Stainless Steel Aluminum Alloy Hoisting Tackle For Lifting Platform


This aluminum alloy and MC nylon open type hoisting tackle with hook possesses light dead weight, which is equipped with the aluminum alloy side panel and the MC nylon sheave. This single Sheave Pulley block is the open type. Our product can be used for lifting heavy objects and other operations in the line construction.



Main Specifications

Item Number Model Number of Sheave Rated Load (kN) Outer Diameter of Sheave ×Sheave Width (mm) Rope Diameter (mm) Weight (kg) Hoisting Point Type
11101 QHN1-1K 1 10 Φ100×31 Φ7.7 1.8 G H
11102 QHN1-2 2 10 Φ80×27 Φ6 1.8 G H
11103 QHN1-3 3 10 Φ80×27 Φ6 2.1 G H
11111 QHN2-1K 1 20 Φ120×35 Φ9.3 2.2 G H B
11112 QHN2-2 2 20 Φ100×31 Φ7.7 2.6 G H
11113 QHN2-3 3 20 Φ100×31 Φ7.7 3.7 G H
11121 QHN3-1K 1 30 Φ150×39 Φ11 3.4 G H B
11122 QHN3-2 2 30 Φ120×35 Φ9.3 4.5 G H
11123 QHN3-3 3 30 Φ100×31 Φ7.7 4.6 G H
11131 QHN5-1K 1 50 Φ166×40 Φ13 5.2 G H B
11133 QHN5-2 2 50 Φ150×39 Φ11 5.5 G H
11134 QHN5-3 3 50 Φ120×35 Φ9.3 5.1 G H
11141 QHN8-1K 1 80 Φ205×49 Φ17 7.2 G H B
11142 QHN8-2 2 80 Φ166×40 Φ13 8.3 G H
11143 QHN8-3 3 80 Φ150×39 Φ11 7.9 G H
11151 QHN10-1K 1 100 Φ246×60 Φ18.5 11.4 G   B
11152 QHN10-2 2 100 Φ166×40 Φ13 10.2   H
11153 QHN10-3 3 100 Φ150×39 Φ11 11.7   H
11161 QHN15-1K 1 150 Φ280×65 Φ21.5 12.1     B
11162 QHN15-2 2 150 Φ205×49 Φ17 12.8   H
11163 QHN15-3 3 150 Φ166×40 Φ13 11.8   H
11164 QHN15-4 4 150 Φ150×39 Φ11 13.9   H
Purpose: Used for lifting heavy cables during construction.

Features: Constructed with aluminum alloy side panels and MC nylon pulleys, resulting in lightweight design. Single-wheel lifting pulley is of open type.


To support transmission work, Marshine Power offers tubular stringing rollers, hydraulic pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable drum winding shafts and stands - all of which are OEM and professionally manufactured, conforming to ISO 9001:2008 standards, and sold to over 50 countries worldwide. For certain projects like emergency tower restoration and cross structures, we offer customization, as well as safety tools and accessories, with no minimum order requirement. We provide free assistance with technical issues or product inquiries. Please feel free to reach out to us. Thank you.


Nylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley Block
Nylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley BlockNylon Sheave Wire Lifting Pulley Block

1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.



2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.



3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.



4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.



5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.



6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.


Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.



Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
