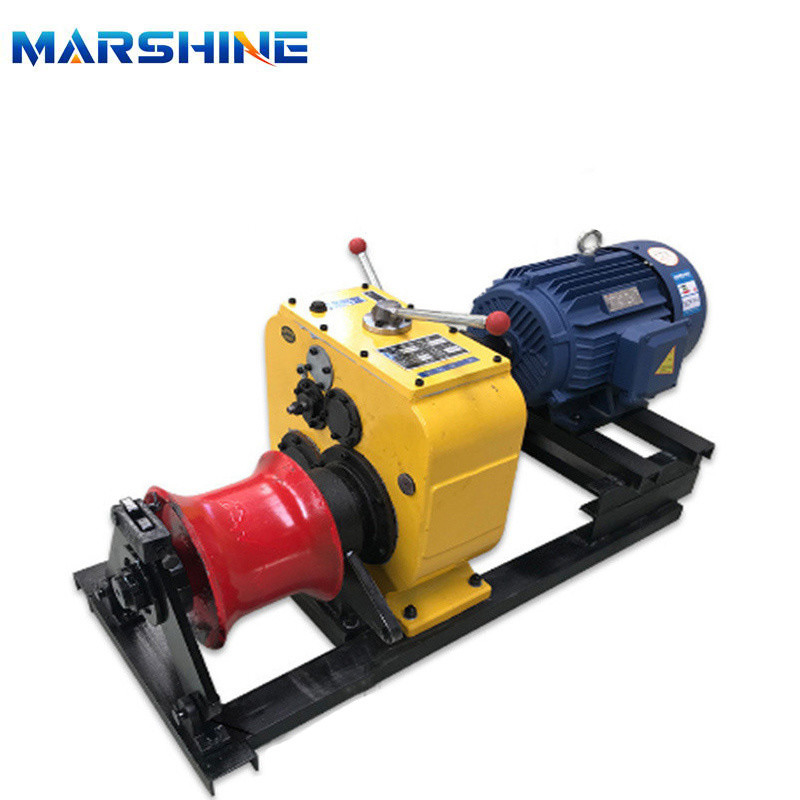

Electric Transmission Stringing Equipment Capstan Power Cable Pulling Machine

Electric Engine Power Capstan Winch For Heavy Duty Industrial Applications

Brief Introduction

Mortor winch is set up high-voltage transmission lines and laying of aerial construction machinery underground cables, smooth, convenient for Tower Group legislature, set up guide (land) lines, lifting, pulling in a variety of complex conditions. Motor cutter grinding widely used in electricity, telecommunications line construction group established tower or motor actinomycetes, also in place for lifting and pulling heavy objects, suitable for field sites without electricity, the use of flexible construction, docks and so on. The experiments and field practice has proved that with a reasonable structure, small size, light weight, utilitarian large, flexible operation, easy handling, etc., the majority of electric power, telecommunications operators welcome. Motor cutter grinding force divided by diesel powered winch and winch motor gasoline.

Characteristic

Small Volume & Compact Structure.Light Weight,Easy to Transport.High Efficiency,Save Labor.Widely Used,pulling,hoisting,lifting and so on.Safe & Reliable,Interlock Brakes System.

Operation

1, before the boot, you must first open the cutter mill drive clutch, and the before and after change lever to the neutral position aside, then to boot.

2, when the clutch toggle action should fast, otherwise the interlock brake does not work, increase the impact of the formation of the pawl of the automatic braking. At boot time should not be too hard, to be able to drive the input shaft pulley without slip can be.

3, must open when shifting the transmission clutch, otherwise it will damage the gear after shifting should check whether shifting firmly together, jump stop to prevent the occurrence of the phenomenon.

4, variable-speed process, if the gear difficult phenomenon occurs, can not be forced into the block, you can use hand-cranked device to help block specific practices such as: hand with a wrench toggle means to rotate at an angle to the block.

Maintenance and safe use

Engine use and maintenance, according to the machine instructions. Lifting shall not exceed in line with use.Lubricating oil surface must be kept within 1/4.gearbox, before using the machine outside the bearing should add oil.
4. Automatic burning cars and interlock brakes, should always pay attention to the wear of the friction plate, the automatic braking gear and back tighten loose gap of 0.5 mm, if the gap is greater than 1.5 mm, you must replace the friction plate, or likely to cause accidents.
5. Automatic brake load the gearbox, automatic normal lifting, due to the reverse gear is stuck, there is no "beep beep" sound when the back loose.
6. The bearing support frame is anchored on both sides of the reel anchor point, it can not be used as an anchor point to another location.
7. After the long-distance transport aircraft, before use, must be a detailed examination of the various components fastening screws loose, ministries parts is stagnant leak. Gearbox ZL4 aluminum body with screws on it should not be too tight and unnecessary disassembly, but can not use a hammer.

Technical Parameters

To support transmission work, Marshine Power offers tubular stringing rollers, hydraulic pullers, wire rope pulley blocks, lifting pulleys, wire rope grips, cable drum winding shafts and stands - all of which are OEM and professionally manufactured, conforming to ISO 9001:2008 standards, and sold to over 50 countries worldwide. For certain projects like emergency tower restoration and cross structures, we offer customization, as well as safety tools and accessories, with no minimum order requirement. We provide free assistance with technical issues or product inquiries. Please feel free to reach out to us. Thank you.

1. Training and Services:
Marshine is a company specializing in the development, design, and manufacturing of construction electrical equipment and tools. We not only produce and sell products that meet international standards, OEM, and custom products, but also provide quality tracking and service monitoring.

2. What about the quality of your products?
Our products are strictly manufactured according to domestic and international standards, and each product undergoes testing before leaving the factory. If you would like to view our quality certifications and various test reports, please consult us.

3. Why choose us?
Because we can provide you with high-quality service, quality products, and reasonable prices. In addition, we can also offer customers smooth delivery and excellent solutions.

4. Customer Inquiry:
If there is an emergency, customers can also use online chat (Skype, WeChat) for faster and better communication. Any inquiries will be replied to within 12 working hours.

5. How to obtain samples?
We can provide free samples for buyers to test, but buyers need to pay for shipping. Existing samples take 2-3 days. If there is no stock, we will notify the delivery date.

6. What about packaging and shipping?
All goods will be securely packaged in plywood boxes for long-distance transportation. We support EXW, FOB, CIF, CFR terms.

Required documents such as packing lists, commercial invoices, bills of lading, air waybills, CO, Form E, Form F, etc., will be provided.

Note: If you cannot find the products you need, please feel free to contact us. We will provide the most favorable quotation as soon as possible after confirming your requirements.
